Lightlines

A small controller for large luminaries

which will boost your creativity!

Tech specs

It has 19 outputs (16 dimmable light sources and 3 rgb channels) to be configured via a webpage to fit your lighting needs.

LightLines is perfect for colourful patterns with addressable pixels (rgb-ledstrips). It combines easily with lighting strips and/or bulbs.

Tunable white, dynamic white, CCT, our software offers scenes and schedules for a broad range of circadian cycles. All to be combined with mood patterns and functional light.

LightLines is a dream tool for the light designer who thinks out of the box. It offers the freedom of design required for flexible lighting tasks such as coworking-spaces and offices. For rooms with poor daylight, LL is the way to go. You create circadian cycles without external electronics or home automation. LightLines fits in both small and large spaces because it is scalable. It is also perfect for simple, everyday use with a standard light switch.

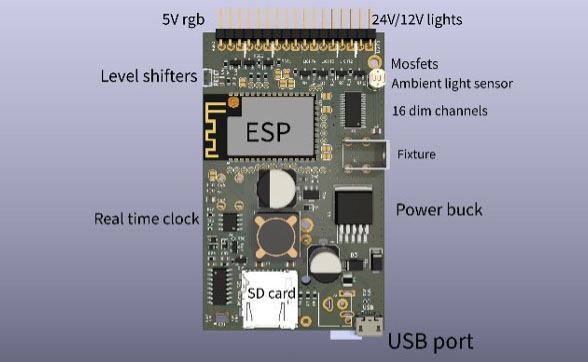

The board

This board is made to mix lighting strips (24v/12v) with addressable rgb strips (5v). It offers three digital output channels for driving rgb strips with separate patterns. It also has a 16 channel output driver for dimming segments of lighting strips.

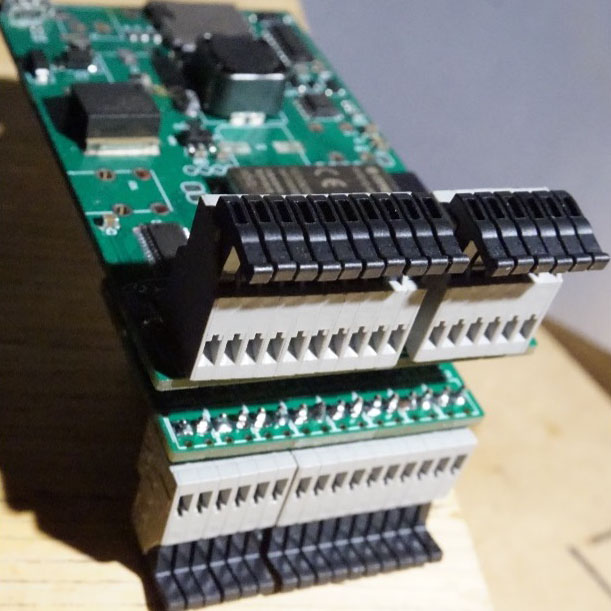

This means you can cut the lighting strips and control each segment separately. An add-on board with 12 extra light channels is available in option. Connectors are standard pitch 2.50 or 2.54mm available everywhere.

LightLines requires a single power-supply of your choice 12 or 24V (depending on the light sources used) and a power of 1A up to 10A (depending on the number of light sources or the length of led-strips used).

Software

With the included software you create lighting-scenes. Each scene can have mood- patterns (rgb) and/or dimming sequences.

This is a quick composition tool that you can open in the browser of your pc or smart-phone. Once the scenes are set, they can be remotely set by an app, a press-button or external call (Dali, OpenHab).

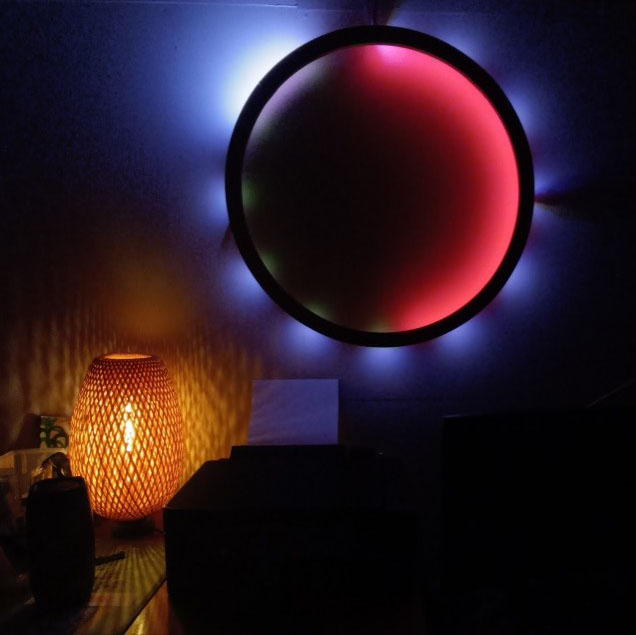

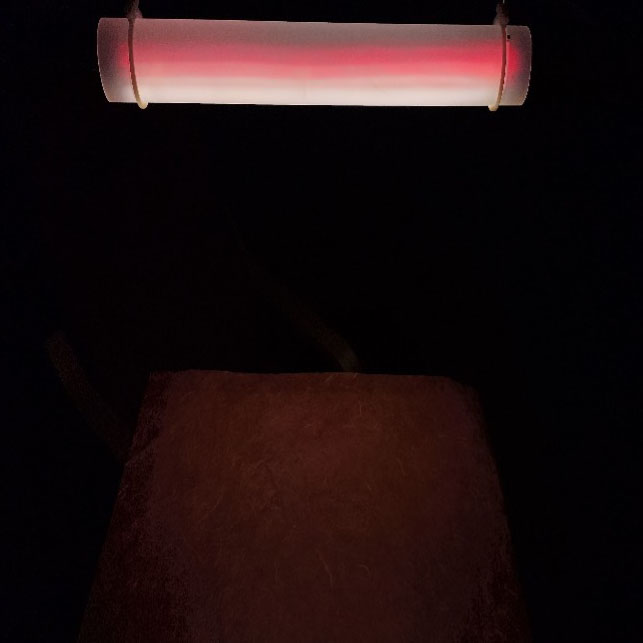

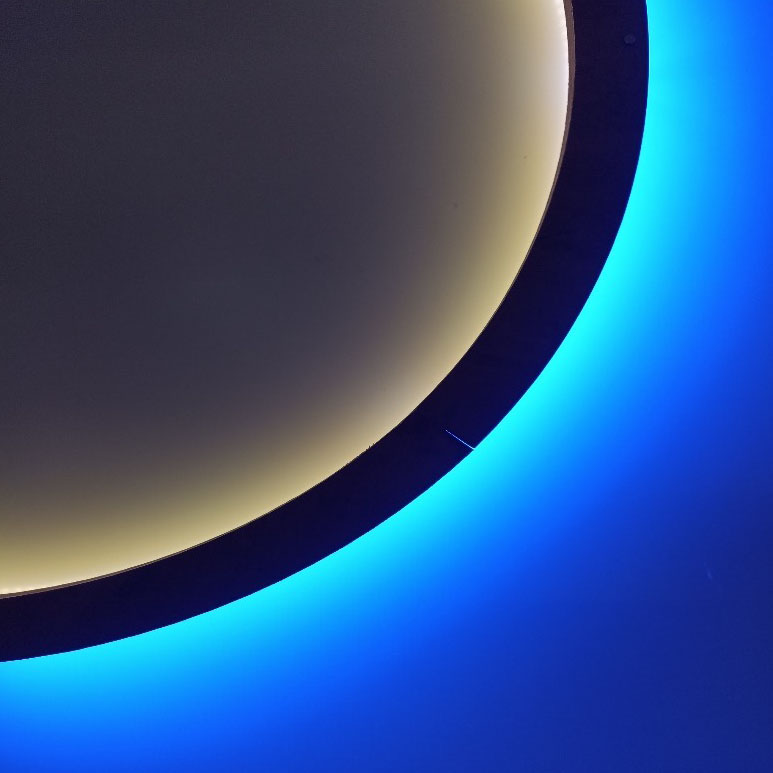

Some applications

WWW.LIGHTLINES.BE

Perfectly combines functional lighting with color canvas in one luminary.
Controls up to 16 lightsources or strip segments (12v-24v) and pixel-precise adressability for RGB strips (5v).
The module has (configurable) connectors for quick maintenance & repair.
Endless non-repeating color moods by software selectable patterns.
Subtle and slow-motion color blending creates unique artistic spheres.
Dynamic and automated tunable-white applications.
Safety voltage (24v or 12v) power input for multiple lightsources.

For more information, contact me
